AC 100V-227V LED High Bay Lamp , Moistureproof High Bay Flood Light

Brand Name : LUXSUN

Model Number : LUX-HB-100H/150H/200H/240H

Certification : CE ROHS CB SAA

Place of Origin : China

MOQ : 1PC

Payment Terms : T/T, L/C

Supply Ability : 10000PCS/Month

Delivery Time : 15-20days

Packaging Details : 375x375x180mm & 425x425x205mm

LED Chip : Lumileds 3030

CRI : >70 (>80, >90 available)

Efficiency : 150LM/W

CCT : 5000K (3000K, 4000K, 5700K available)

BEAM ANGLE : 60º /90º /120º

POWER FACTOR (Typ) : ≥0.97

Material : Aluminium, PC, glass

Color : Black (White)

LED driver : MEANWELL & Inventronics Driver

Input Voltage : 100-227V/AC, 50-60Hz

IK Grade : IK10

IP Rating : IP65

Dimming Options : 0-10v Dimming, DALI

Warranty : 5 years

Contact Now

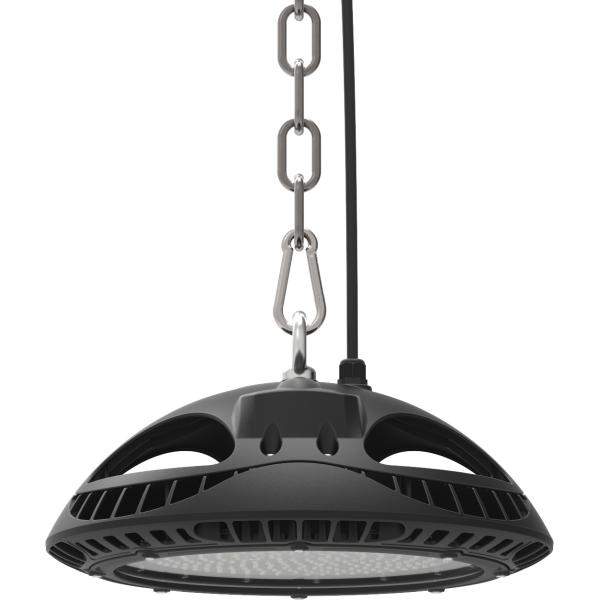

Opair Series IP65 100W-240W UFO LED HIGHBAY With Motion Sensor

Overview


OPAIR is an outstanding value for a wide variety ofapplications andmounting heights.Precision designed optics,lumen outputs and color temperaturesmake the OPAIR an ideal one-for-one replacement ofconven tionalhigh bay systems such as HID and fluorescent for industrial,commercial,manufacturing, gymnasium. The OPAIR Series can be fully dim mable an dis compatible with buildingcontrols, motion sensors and daylight harvesting systems, The brand LED's enable longlife,high lumen maintenance and output.

Main Features


• Ultra efficient system efficacy of up to 145lm/W
• High quality Lumileds3030 LED chips and Mean Well Driver
• Innovative protective dust cover
• Shatterproof polycarbonate lens
• Wide beam reflector
• >50,000hrs to L80
• Carabiner included
• Epoxy anti-corrosion coating

•Built-in motion sensor - Provides automatic on/off functionality for energy efficiency using motion detection. The light will turn on when motion is detected and turn off after a set time when no motion is detected.

•5 years warranty - Indicating the quality and durability of the product.

•Operating temperature: -20°C to 40°C

•Power factor: >0.95

•CRI>80, Colour temperature: 5000K (neutral white)

•Die-cast aluminum housing, PC opaque cover

•Surge protection: 10KV

•Certifications: RoHS, CE, EMC

•Dimmable (some models) - Can be dimmed using a dimmer switch for customizing the light levels.

AC 100V-227V LED High Bay Lamp , Moistureproof High Bay Flood Light

Product Parameter

Part number LUX-HB-100H LUX-HB-150H LUX-HB-200H LUX-HB-240H
Power 100W 150W 200W 240W
Voltage 100-277V
Angle 60°/90°/120°
Lumen 15,000lm 22,500lm 30,000lm 36,000lm
Efficiency 150lm/W
CCT 3000K/4000K/5000K/6000K/6500K
CRI 70/80/90
IP 65
IK 10
Operation temperature -30º to +45ºC
Dimmable Options DALI, 1-10V
Warranty 5 Years
Life span 50,000hrs
AC 100V-227V LED High Bay Lamp , Moistureproof High Bay Flood Light
AC 100V-227V LED High Bay Lamp , Moistureproof High Bay Flood Light
AC 100V-227V LED High Bay Lamp , Moistureproof High Bay Flood Light

High Performance Lighting:

The light emitted by each LED chip is perfectly refracted through a dedicated lens, ensuring optimal, controlled lighting at 110º beam angle, across a broad area. This effectively lights large spaces with fewer luminaires required.

At 4000k and >80Ra, each unit radiates a bright and colour enriching light that helps productivity when picking stock within warehouses, quality control after manufacturing and despatch of production facilities.

Efficiency is no good without good quality optical control and when used as part of a designed lighting scheme, our 150 lm/W Area High Bay offers low running costs for large area lighting projects.

Quick & Easy Installation:

Engineered from corrosion resistant aluminium alloy, the low profile, perfectly balanced luminaire is incredibly lightweight and takes just minutes to instal by a

single person. The unit can be held in one hand, whilst attaching the unit to the single source hanging fixture, with the other.

Controlled Lighting:

For light only when required, there are a range of easy fit, control options. Choose from PIR, microwave, daylight, DALI-2 and wireless options. Simply plug

the unit in the centre of the light fixture and you are good to go in seconds, with no complex rewiring, or counterbalances required. For large installations,

with multiple luminaires, the remote control features a bulk upload feature. This allows multiple lights to be programmed in one go. And, if for any reason your

floor layout changes, our sensors are interchangeable, making it easy to re-apply your lighting control.

Built to last:

A High Bay is a long term 10-to-20-year investment so the Area Bay has not only been engineered to last but also designed to quickly accommodate upgrades and replacement parts when required.

With a 50,000 LED lifetime, and a 5 years warranty, and low running costs, you can rest assured that the Area Bay is a smart lighting investment.

Why Choose Us

1. We use Dialux software to simulate the luminous effect, so as to make sure our proposals meet clients' requirements.

2. Our PMC department follows the production and we can report to you at any time about the production by photos and videos.

3. We have IQC, IPQC, and OQC during the production, guarantee the products.

4. We have a large capacity and quickly finish the cargos in a short time with our experienced production team.

OUR TEAM
Be Bold: be proactive, make decisions, take responsibility, try new things.

Be Curious: ask questions, do some research, learn new techniques, study our clients and their industries.

Be Together: play an active role in the team, support your colleagues, collaborate, have fun.

Be Connected: meet people, make contacts, build relationships, see the bigger picture.

Be Better: look for ways to improve, challenge yourself, never stop learning, strive to be the best.
